Libya warned on Sunday that NATO-led air strikes could cause a “human and environmental disaster” if they damaged the country’s massive Great Man-Made River (GMMR) project.
Built at a cost of 33 billion dollars, the GMMR extracts water from deep beneath the Sahara desert at a depth of between 500 and 800 metres (1,600 to 2,500 feet), purifies it and transports it to the coastal cities of the north where most of the population is concentrated. Engineer and project manager Abdelmajid Gahoud told foreign journalists in the ultra-modern control centre on the outskirts of Tripoli, that a “human and environmental disaster” was on the cards if the GMMR was hit.
Three pipelines, one for gas, one for oil and another for water, run underground parallel to the 400-kilometre-long (248 miles) road from the eastern city of Benghazi to Moamer Kadhafi’s home town of Sirte, through the area between Ajdabiya and Sirte where there have been many coalition air raids.
“If one of the pipelines is hit, the others are affected as well, which could mean a humanitarian catastrophe,” Gahoud said. “If part of the infrastructure is damaged, the whole thing is affected and the massive escape of water could cause a catastrophe,” he added, leaving 4.5 million thirsty Libyans deprived of drinking water.
Conceived in the 1960s and launched in the 1980s by Kadhafi as part of a plan to make Libya self-sufficient in food, the GMMR provides 70 percent of the population with water for drinking and irrigation.
A total of 4,000 kilometres of pipeline were laid at a depth of two to three metres crossing the country from south to north and making the GMMR the largest and most expensive irrigation project in history.
It is designed to pump water from Libya’s vast, underground Nubian Sandstone Aquifer System in the south to populated coastal areas in the north where most of the country’s six million inhabitants live and work. (TerraDailyWaterWorld)
In the 1950s, oil exploration in Libyan Arab Jamahiriya turned up another resource beneath the scorching sands: the Nubian Sandstone Aquifer System. Radiocarbon analysis showed that some of the water in the aquifer system was 40 000 years old. Tapping the aquifers was chosen as the most cost-effective option for meeting the country’s water needs.
In 1993, Phase I of the Great Man-made River (GMMR) Project brought water from eastern well-fields at Sarir and Tazerbo to Benghazi. In 1996, Phase II brought water from well-fields at Jebel Hassouna to Tripoli. Phase III is still under construction. The project’s largest reservoir, known as the Grand Omar Mukhtar, is located at Suluq.

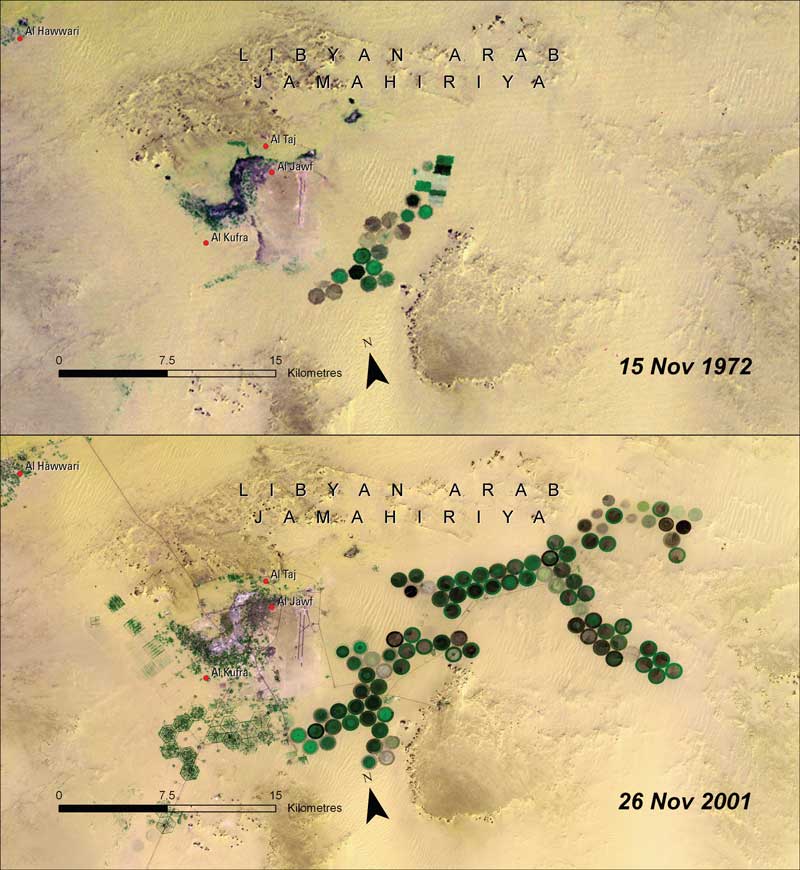

When fully operational, the GMMR will pump 3.6 million cubic metres of the Nubian Aquifer water per day. Water from the aquifer is used to support Suluq at Al Kufra.
At current extraction rates the Nubian Sandstone Aquifer System is not likely to be depleted for a thousand years. Nevertheless, it is shared among four African nations: Libyan Arab Jamahiriya, Chad, Sudan, and Egypt. The concern of environmentalists is that eventually people will drain the aquifer faster than nature can renew it. The International Atomic Energy Agency is trying to bring the four countries together to plan rational shared use of the water.
There are a total of 4071 kilometres of pipelines in the project:
- 1600km of pipelines in Sarir/Sirt – Tazerbo-Benghazi system
- 1277km of pipelines in Hasouna-Jeffara system
- 190km of pipelines in Assdada-Ajdabiya system
- 383km of pipelines in Tazerbo-kufra system
- 621km of pipelines in Ghdames-Zuwarah system.
As part of the project huge concrete reservoirs were constructed in various parts of the country; some of which supply water to the various lines used to regulate and provide on demand potable water, while other reservoirs were constructed in circular lakes, more than 1km in diameter, for agricultural projects. Nearly 70% of the water conveyed by the project is intended for agricultural purposes, while the remaining amount is for domestic consumption throughout the year. The main reservoirs include:
- Ejdabiya Reservoir (storage: 4000000 cubic meters)
- Omar Elmokhtar Reservoir (storage: 4700000 cubic meters)
- Omar Elmokhtar Grand Reservoir (storage: 24000000 cubic meters)
- Ghordabiya Reservoir (storage: 6800000 cubic meters)
- Ghordabiya Grand Reservoir (storage: 15400000 cubic meters)
Out of 1300 wells planned there are currently 1116 production wells in the project, producing a total of 6.5 million cubic meters of water daily, and divided as follows:
- 476 wells in Hasouna field
- 300 wells in Kufra field
- 126 wells in Sarir field
- 108 wells in Tazerbo field
- 106 in Ghdames field
